KDC Proxy Configuration & Testing Guide

A KDC (Key Distribution Center) Proxy allows secure communication with a Kerberos KDC, typically over HTTPS, enabling clients to obtain Kerberos tickets when direct access is not available.

Introduction

This guide outlines the process for configuring and testing a KDC Proxy on Windows Server 2025 Datacenter. Once the server is properly set up, the guide walks through two client-side configuration examples:

Windows client accessing the KDC Proxy
Linux client accessing the KDC Proxy

After completing either client configuration, it becomes possible to access any machine in the network using the YNQ Client, leveraging Kerberos authentication via the KDC Proxy.

What Is a KDC Proxy?

A KDC (Key Distribution Center) Proxy introduces a modern way to securely communicate with a Kerberos KDC, typically over HTTPS, enabling clients to obtain Kerberos tickets across network boundaries such as firewalls and NAT (Network Access Translation) when direct access to the KDC (usually located on a domain controller) is not available. The proxy acts as an intermediary, forwarding Kerberos requests from the client to the KDC and then relaying the KDC’s response back to the client.

Prerequisites

Server Requirements

A DC Server with domain configured and Certification Authority Role installed .
For Windows server installation guide click here.
For Active Directory installation and configuration click here.
For Deploying Certification Authority role deployment and configuration click here.
Windows Server 2025 Standard joined the domain, to be configured as KDC Proxy.
For Windows Server installation guide click here. Hardware requirements:
- CPU
  - A 1.4 GHz 64-bit processor with support for x64 instruction set, SLAT, NX, and DEP.
  - 2+ Cores.
- RAM
  - 2 GB for Server Core
  - 4 GB (recommended) if you want to run the Server with Desktop Experience
- Storage – 32 GB minimum.

Windows Client Requirements

Windows 10 or 11 client. For Windows 11 pro installation guide click here.
Both the KDC Proxy Server and client must be joined to an Active Directory domain.

Linux Client Requirements

In this guide we will be using Ubuntu distribution (Ubuntu 24.04). For Ubuntu 24.04 installation guide click here. You can use any other Linux distribution that supports krb5-user 1.20 and above.

Creating a Self-Signed Certificate

A KDC Proxy requires a certificate because it runs over HTTPS, not plain Kerberos (UDP/TCP 88). The certificate provides TLS encryption and server authentication to protect Kerberos traffic. Without it, a client cannot establish a secure connection to the proxy.

Step 1: Create a Certificate Template for KDC Proxy

A certificate template ensures the KDC Proxy gets a certificate with the correct EKU, SAN, and permissions. It simplifies secure and consistent certificate issuance from the CA.

To create the template, follow these steps:

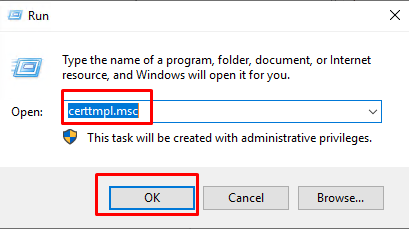

On your DC server press Winkey + R and enter certtmpl.msc into the run box and click OK.

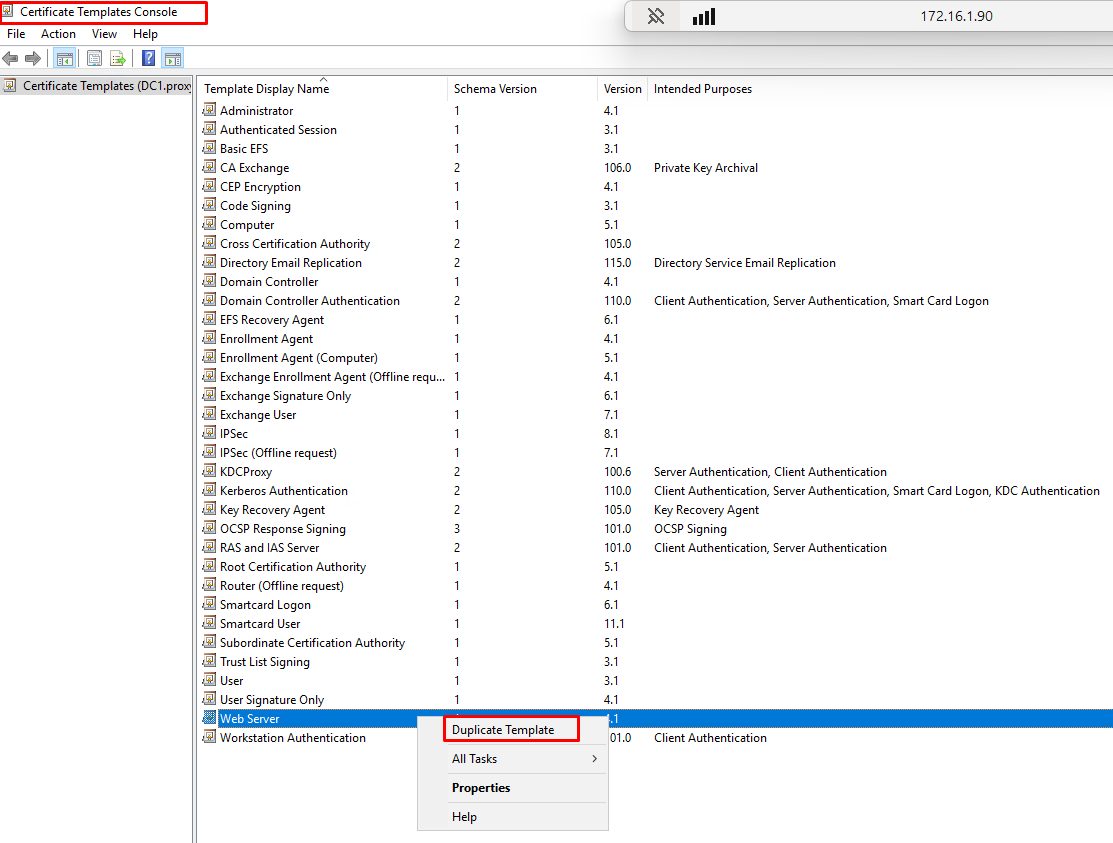

In Certificate Templates Console right click on “Web Server” Certificate and select “Duplicate Template”.

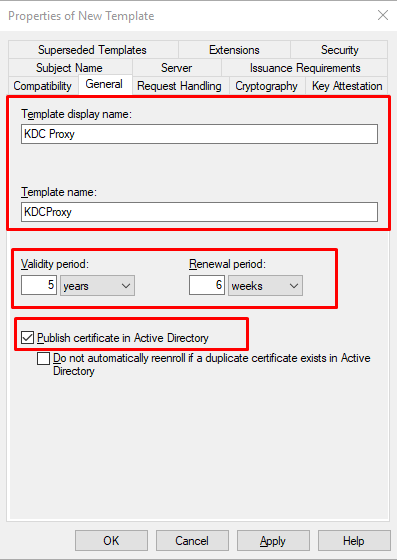

At “General” Tab Set the Template name and the expiration date for the certificate.
Check the box for “Publish certificate in Active Directory” .

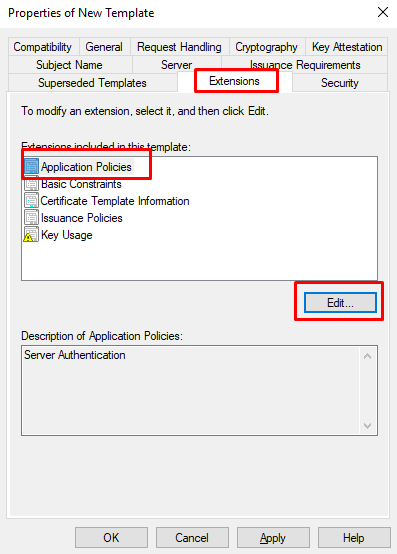

Go to “Extension” tab, select “Application Policies” and click Edit.

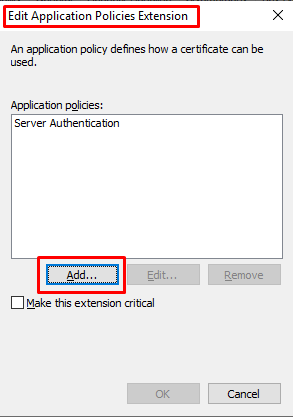

At “Edit Application Policies Extension” click Add.

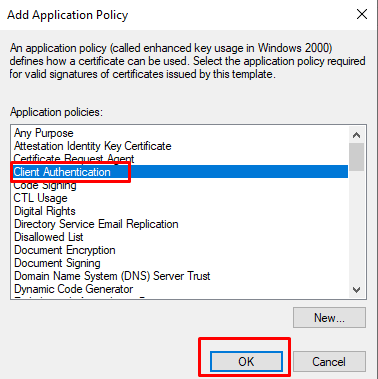

At ”Add Application Policy” select from the list “Client Authentication” and click OK.

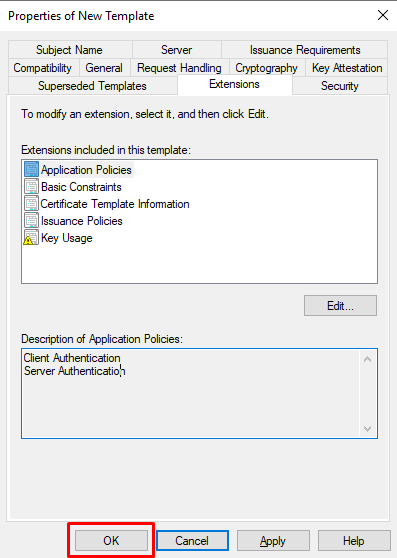

At “Properties of New Template” click OK to finish certificate template creation.

Step 2: Issue the Certificate Template

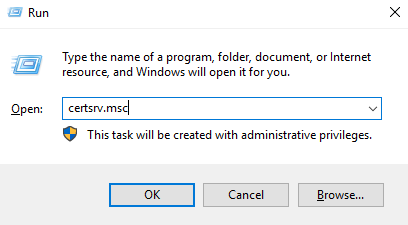

Go to “Certification Authority” by pressing on Winkey + R and entering certsrv.msc.

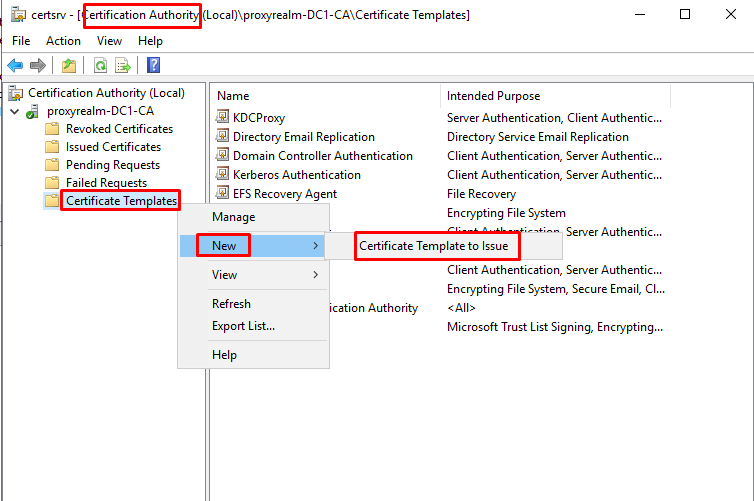

At “Certification Authority” right click on “Certificate Templates” -> “New” -> “Certificate template to Issue”.

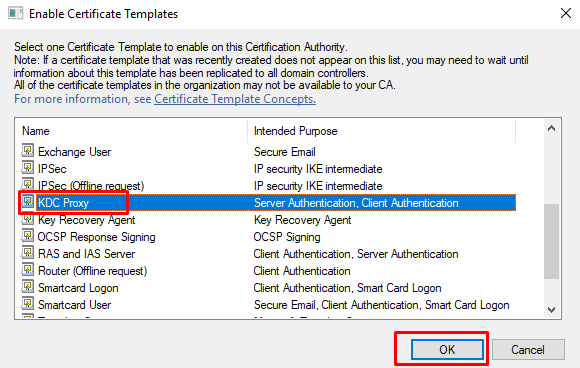

At “Enable Certificate Templates” select from the list the template you created at Step 1 and then click OK.

Step 3: Enroll the Certificate

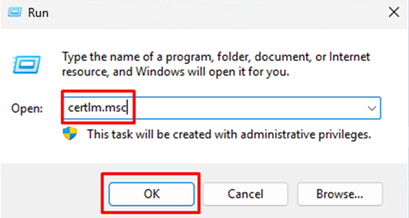

On your KDC Proxy Server press Winkey + R and enter certlm.msc

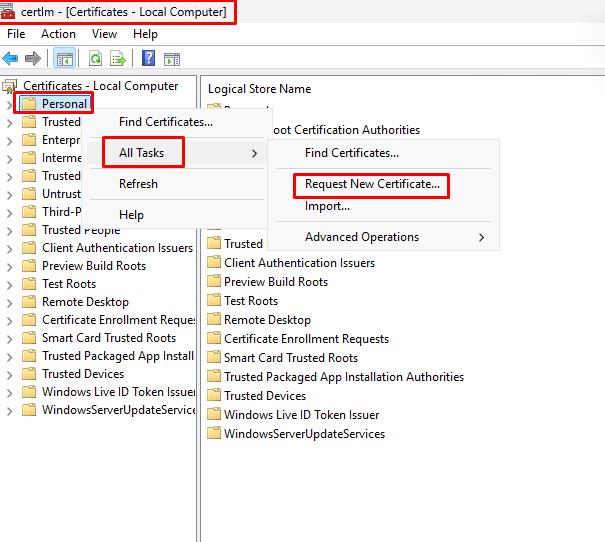

At “Certificates” right click on “Personal” -> “All Tasks” -> “Request New certificate”

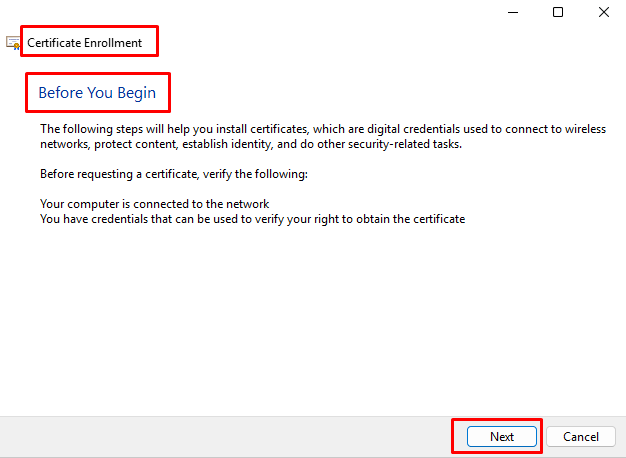

At “Certificate Enrollment” Wizard click Next on “Before You Begin”.

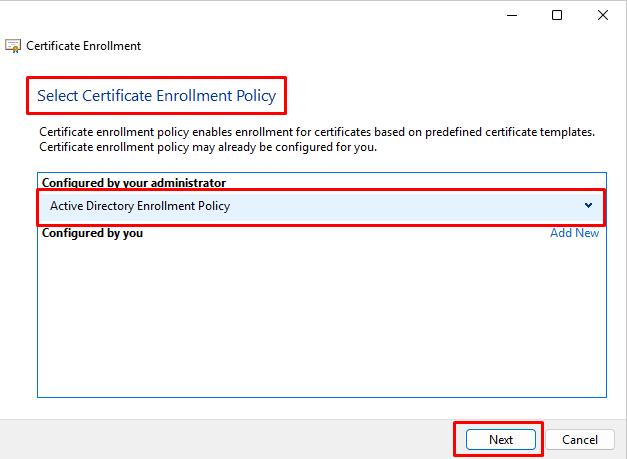

At “Select Certificate Enrollment Policy” select “Active Directory Enrollment Policy” and click Next.

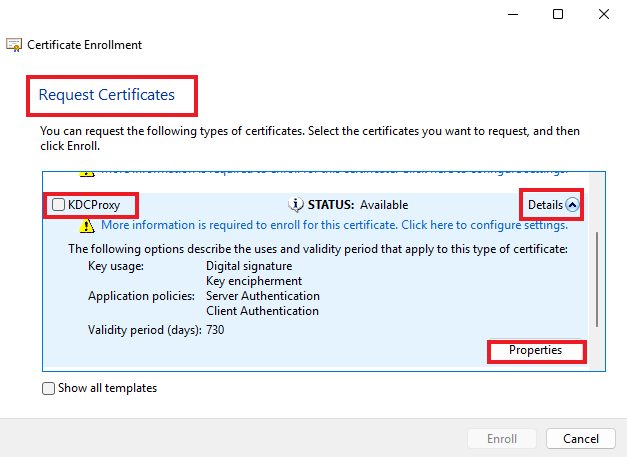

At “Request Certificates” find your “KDCProxy” template from the list, expand “Details” and click Properties.

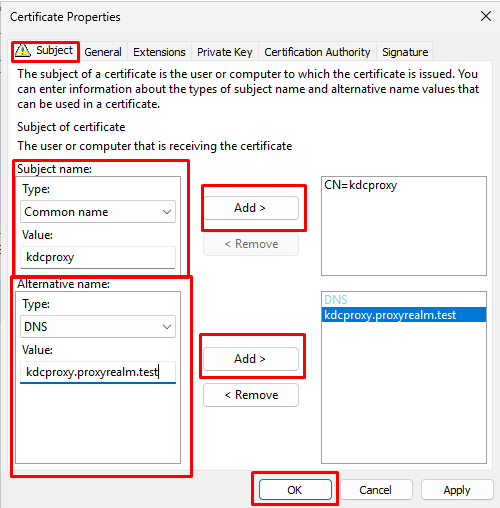

At “Certificate Properties” go to the “Subject” tab. In “Subject name” select “Type: Common name”, enter your KDC Proxy Server hostname and click Add. In “Alternative name” Select “Type: DNS” and enter the Fully Qualified Domain Name (FQDN) of the KDC Proxy Server (e.g., kdcproxy.yourdomain.com) for the KDC Proxy Server and click Add. Then click OK.

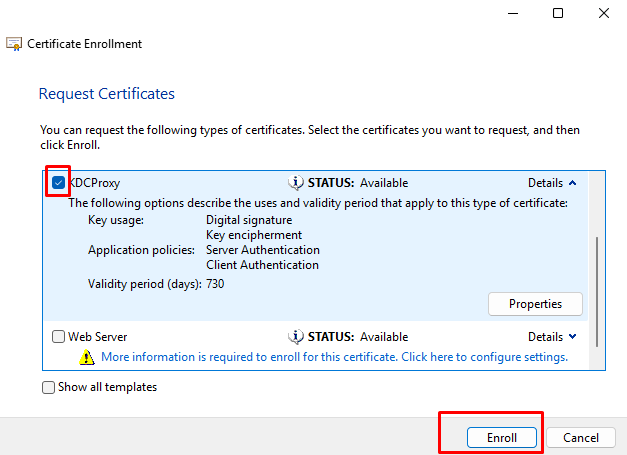

Check the box next to the KDCProxy certificate and click Enroll and then Finish.

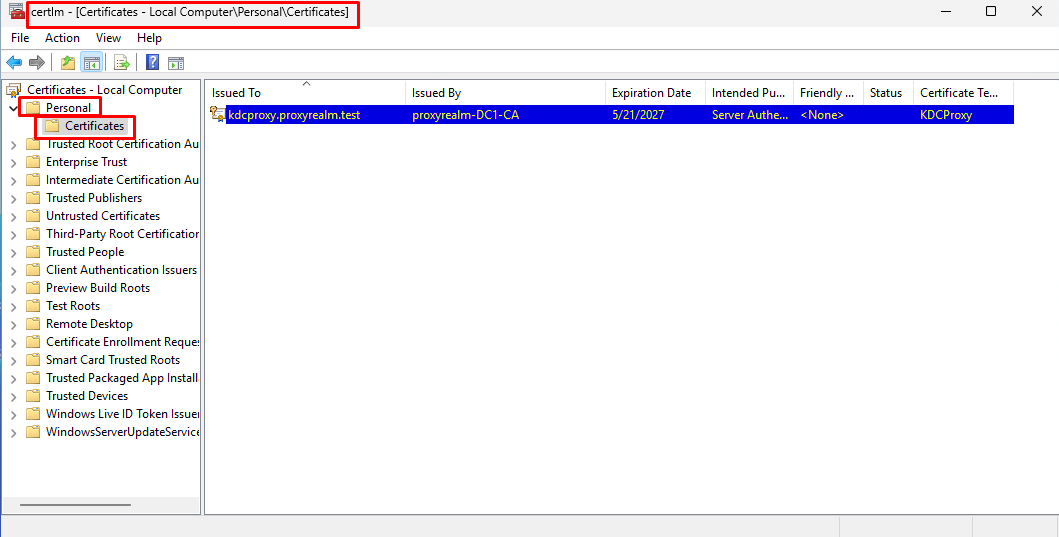

Go back to Computer “Certificates” Console (Winkey + R certlm.msc). Under “Certificates – Local Computer” expand “Personal” and select “Certificates”.

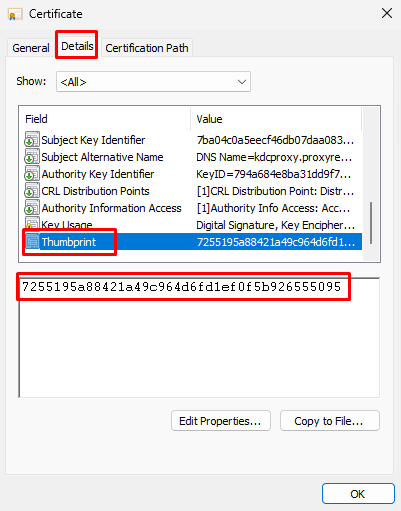

Double click on the certificate you just enrolled . Go to the “Details” tab. Scroll down and select “Thumbprint”. Copy and save the thumbprint inside the notepad or any other text editor.

Configuring the KDC Proxy Server

Step 1: Configure URL ACL for the Endpoint

Reserve the URL namespace https://+:443/KdcProxy in HTTP.sys for use by the Network Service account, allowing it to listen for HTTPS requests on that path.

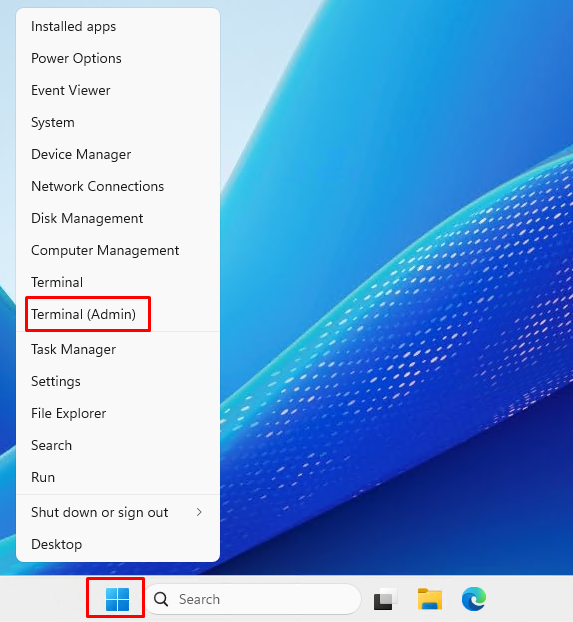

Start an elevated command prompt by right clicking on the Start menu and selecting “Terminal (Admin)”.

Inside the Terminal run the following command:

netsh http add urlacl url=https://+:443/KdcProxy user=”NT authority\Network Service”

Step 2: Associate the Certificate with the Endpoint

Start an elevated command prompt by right clicking on the Start menu and selecting “Terminal (Admin)”.

Create appid to uniquely identify the URL namespace binding in HTTP.sys
inside the elevated terminal run the following:

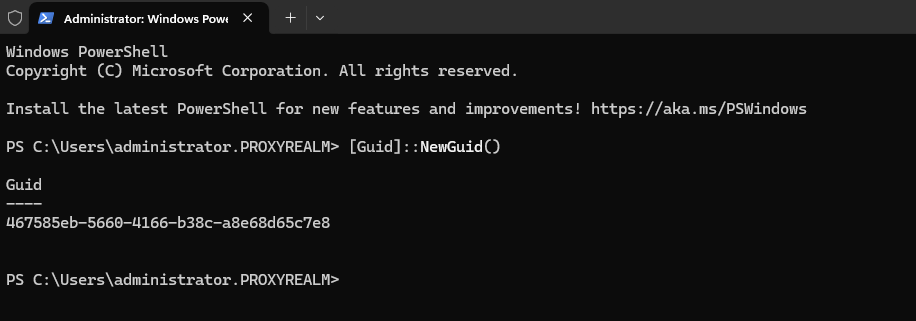

[Guid]::NewGuid()

This command generates a Globally Unique Identifier (GUID) (e.g., a6e8b9e9-9c28-4328-a3ae-3cb7c57dc8e7).

Copy the generated GUID, save it in a notepad (together with your certificate thumbprint) and use it as appid parameter in the next command, within curly brackets {}.
Run the following command to associate the certificate with the endpoint:

netsh http add sslcert ipport=0.0.0.0:443 certhash=<your_thumbprint> appid={<your_appid>}

Replace <your_thumbprint> with the thumbprint you copied from the certificate and <your_appid> with the appid copied previously.

Start the Kdcproxy service by running the following command in the elevated terminal:

net start kpssvc

Configuring and Testing Windows KDC Proxy Client

Windows clients must be configured to use a KDC Proxy, which can be achieved either via Group Policy or by directly editing the registry.

Step 1: Specify the KDC Proxy Address

Option 1: Configure via Group Policy Object (GPO)

On your DC server press Winkey + R and enter “gpmc.msc”.

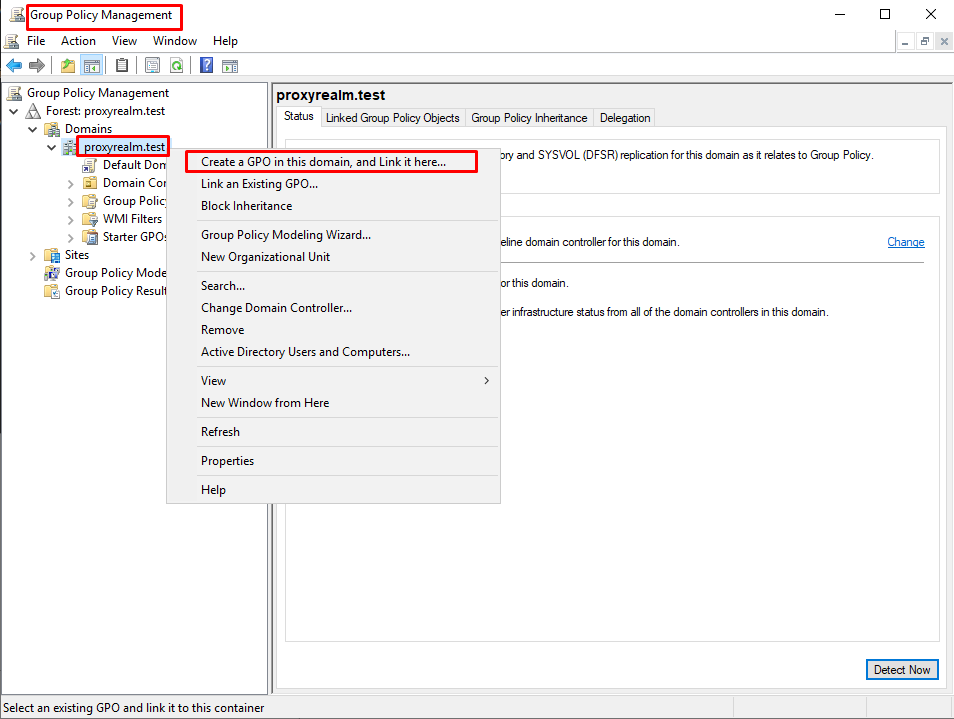

Right click on the Organizational Unit (OU), in which the hosts that will be using the KDC Proxy are at, or right click on the domain name (the policy will apply to the entire domain) and click on “Create a GPO in this domain, and link it here…”. In our lab we’ll create the policy for the entire domain.

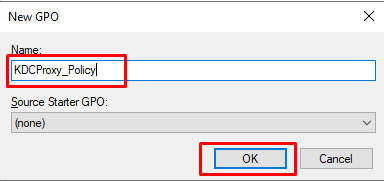

Name the GPO as you like and click OK.

Right click on the policy that was just created and select “Edit”.

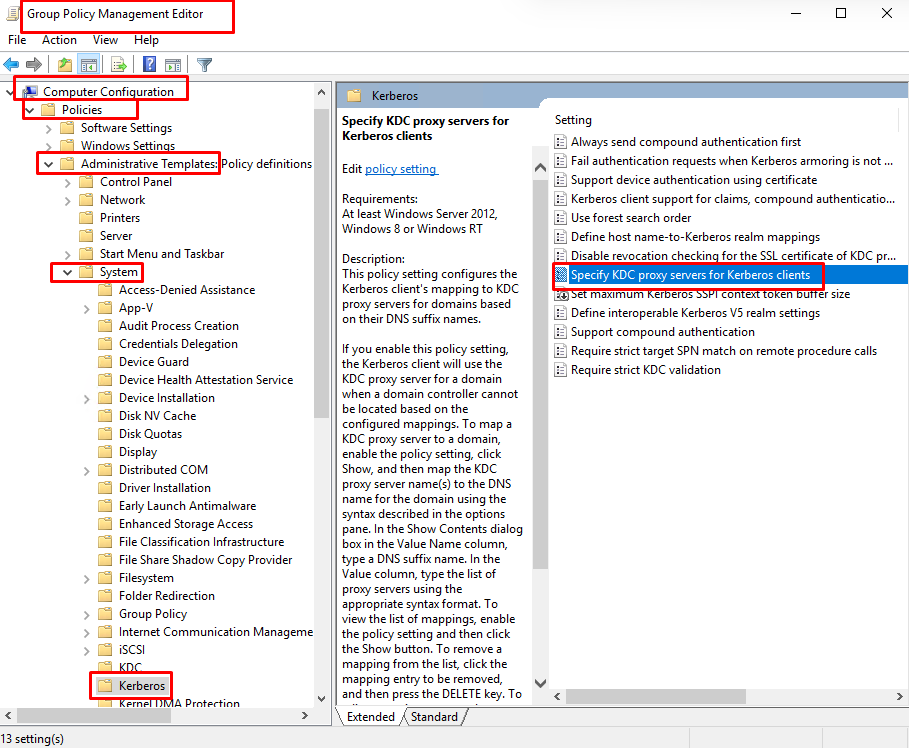

At “Group Policy Management Editor” go to “Computer Configuration” -> “Policies” -> “Administrative Templates” ->”System” -> “Kerberos” and double click on “Specify KDC proxy servers for Kerberos clients”.

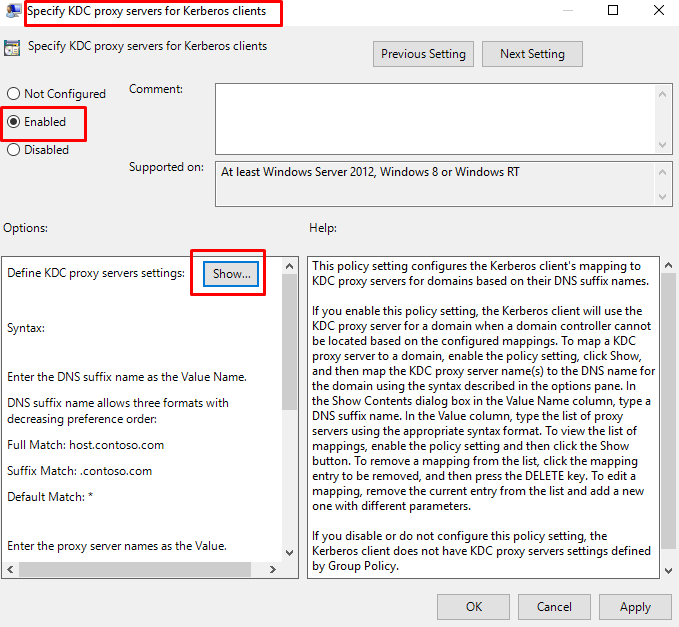

At “Specify KDC proxy servers for Kerberos clients” select “Enabled” and then “Show”.

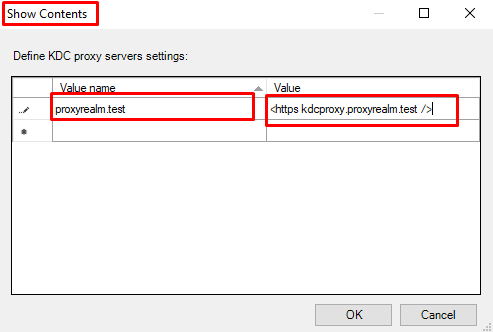

At “Show Contents” enter the following:
- For “Value name” enter “yourdomain.com”
- For “Value” enter “<https kdcproxy.yourdomain.com />”.

Click OK and then OK in the “Specify KDC proxy servers for Kerberos clients” console.

Press Winkey + R and enter “gpupdate /force”.
On your client host press Winkey + R and run “gpupdate /force” and reboot your host.

Option 2: Configure via Registry

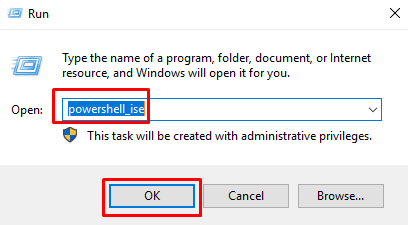

On your client host open elevated PowerShell Integrated Scripting Environment (ISE) by pressing Winkey + R and entering powershell_ise.

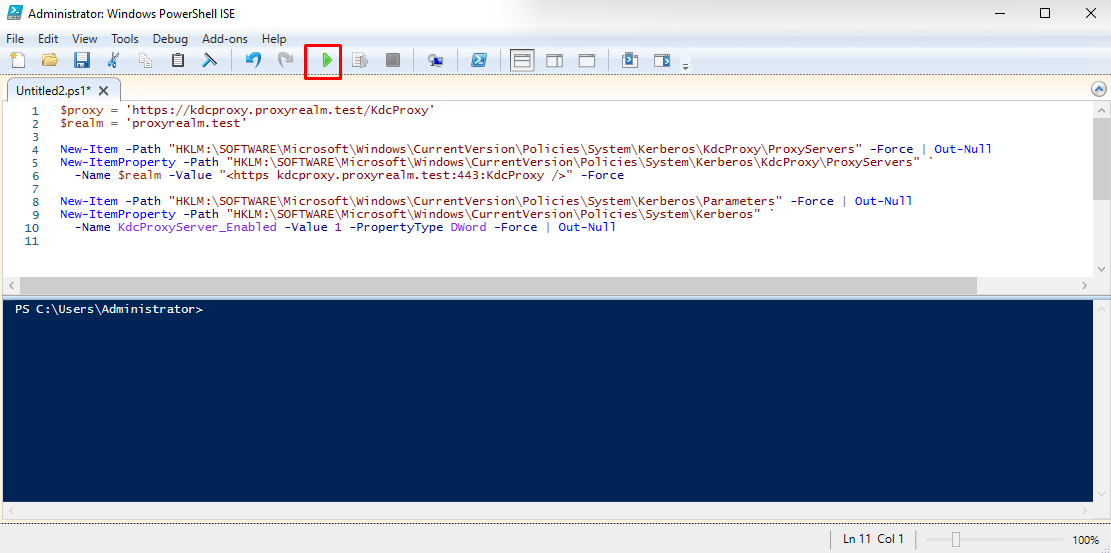

Copy the following into PowerShell ISE:

$proxy = ‘https://kdcproxy.proxyrealm.test/KdcProxy’
$realm = ‘proxyrealm.test’
New-Item -Path “HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System\Kerberos\KdcProxy\ProxyServers” -Force | Out-Null
New-ItemProperty -Path “HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System\Kerberos\KdcProxy\ProxyServers” `
-Name $realm -Value “<https kdcproxy.yourdomain.com />” -Force
New-Item -Path “HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System\Kerberos\Parameters” -Force | Out-Null
New-ItemProperty -Path “HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System\Kerberos” `
-Name KdcProxyServer_Enabled -Value 1 -PropertyType DWord -Force | Out-Null

And click Run Script.

Reboot your client host.

Step 2: Block the KDC Port to the Domain Controller

To ensure that Kerberos tickets are issued by the KDC Proxy server rather than directly by the Domain Controller (DC), configure the Windows Firewall to block port 88 (both TCP and UDP) traffic to the DC. This action forces clients to route Kerberos authentication requests through the KDC Proxy.

Configure the Windows Firewall

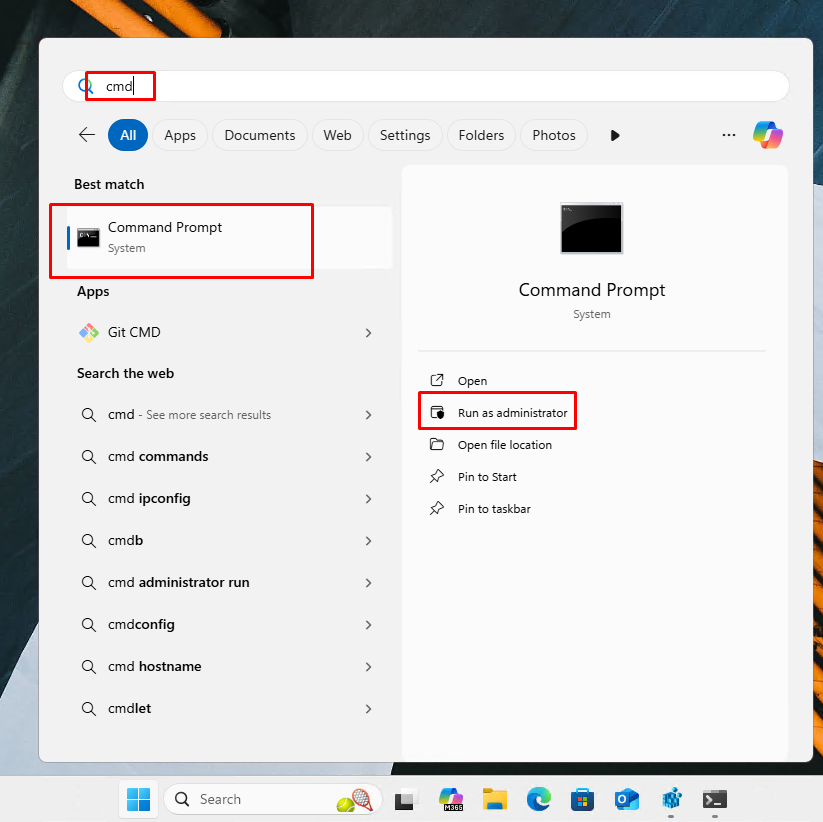

Open an elevated command line terminal by clicking on Start, search for “cmd”. Right click on CMD and click on “Run As Administrator”.

Run the following command into the Terminal in order to block TCP connection:

netsh advfirewall firewall add rule name=”Block Kerberos TCP to DC” dir=out action=block protocol=TCP remoteip=<DC_IP_Address> remoteport=88

Replace <DC_IP_Address> with your actual DC IP address.

Step 3: Test the Windows KDC Proxy Client

Login into your host client
Open an elevated command line terminal by clicking on Start, search for “cmd”. Right click on CMD and click on “Run As Administrator”

In the elevated CMD terminal run the following command:

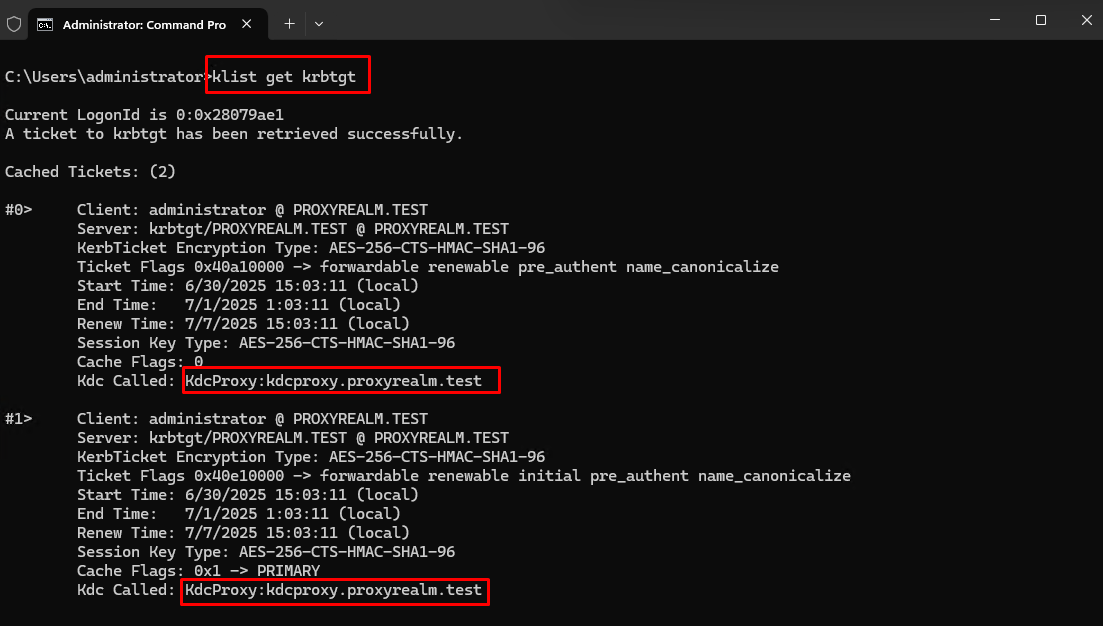

klist get krbtgt

You should see one or two tickets showing up. Make sure that under “Kdc Called” it shows your KDC Proxy hostname.

Configuring and testing Linux KDC Proxy YNQ Client

Step1: Export the CA Root Certificate

The Linux client needs the CA root certificate to verify the authenticity of the KDC Proxy server’s HTTPS certificate. Without it, the YNQ client cannot establish a trusted TLS connection to the proxy.

On your DC server open Certification Authority console by pressing Winkey + R and entering certsrv.msc into the run box and click OK.

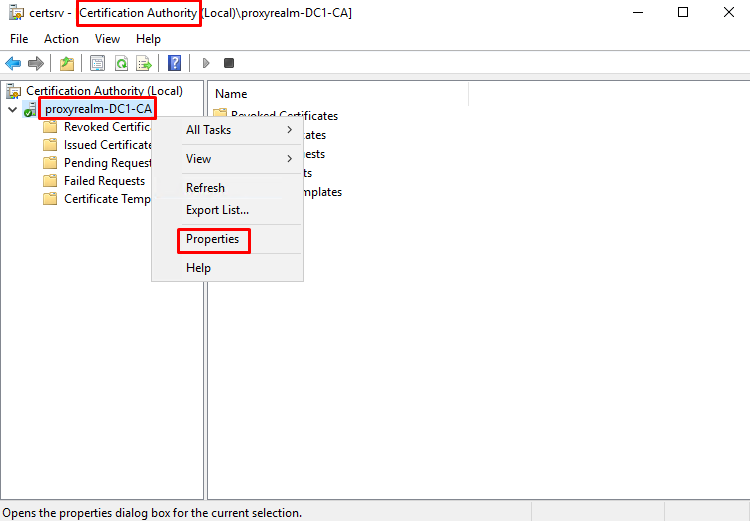

At “Certification Authority” right click on the CA name and select properties.

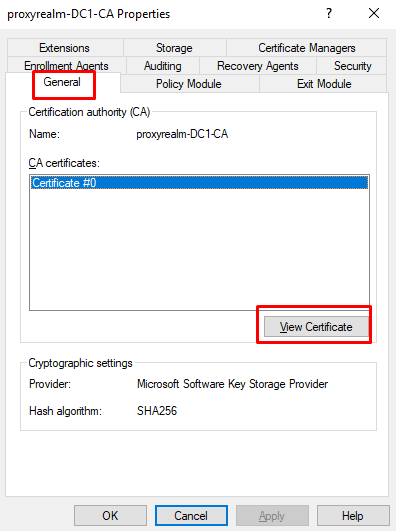

At “General” tab click on “View Certificate”.

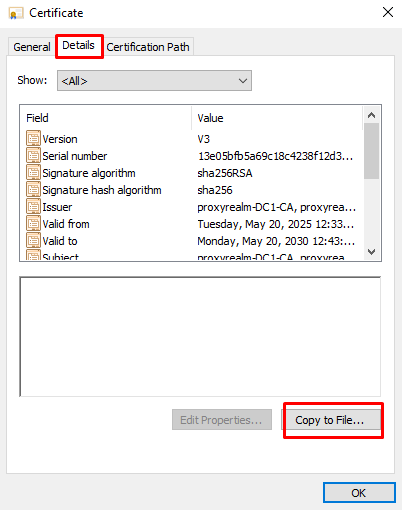

Go to “Details” tab and select “Copy to File…”.

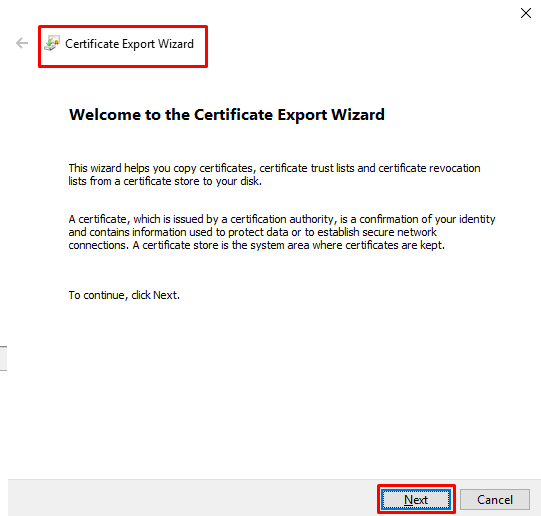

Click on “Next” at “Certificate Export Wizard”.

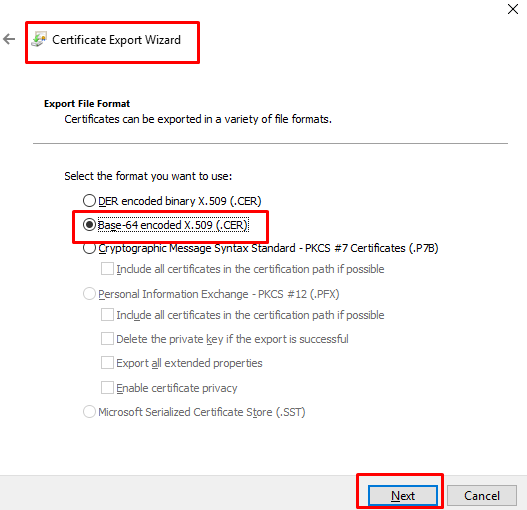

Select the format “Base-64 encoded X.509 (.CER)” and click “Next”.

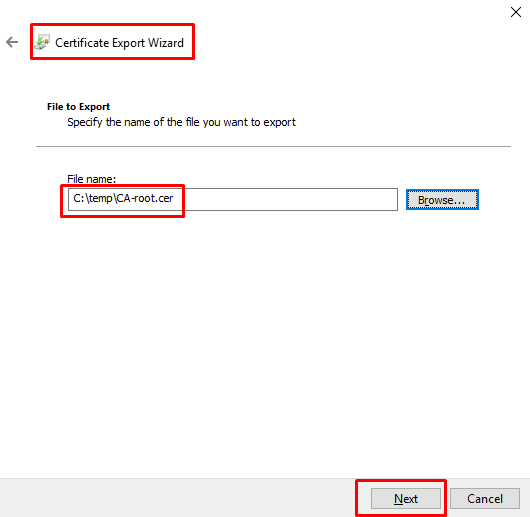

Specify the path and name to save the certificate and click “Next”.

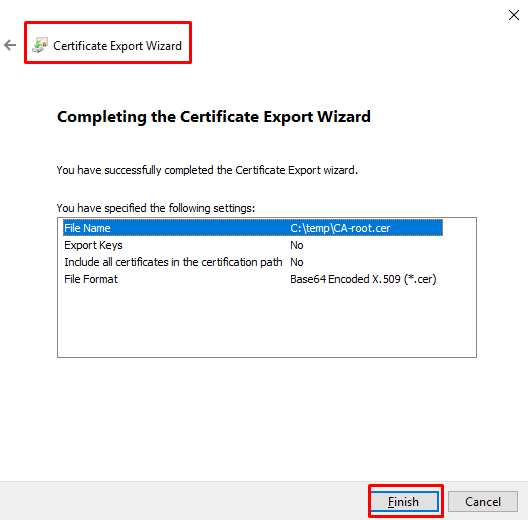

Click “Finish”.

Step 2: Install the Certificate on the Linux Client

Once exported, transfer the file to the Linux client, place it in the ca-certificates folder and install it by running:

sudo cp ca-root.cer /usr/local/share/ca-certificates/kdcproxy-ca.crt
sudo update-ca-certificates

Step 3: Install Kerberos Client Packages on the Linux System

To set up an Ubuntu system as a Kerberos client using MIT Kerberos, you’ll need to install the following:

sudo apt update
sudo apt install -y krb5-user libpam-krb5 libpam-ccreds krb5-k5tls

Step 4: Configure krb5.conf

Open /etc/krb5.conf with your favorite text editor (Vim, nano…) and insert the following:

[libdefaults]
default_realm = yourdomain.com
dns_lookup_kdc = false
dns_lookup_realm = false
ticket_lifetime = 24h
renew_lifetime = 7d
forwardable = true
[realms]
PROXYREALM.TEST = {
default_domain = yourdomain.com
kdc = https://kdcproxy.yourdomain.com/KdcProxy
admin_server = kdcproxy.yourdomain.com
http_anchors = FILE:/etc/ssl/certs/ca-certificates.crt
}
[domain_realm]
. YOURDOMAIN.COM = YOURDOMAIN.COM
YOURDOMAIN.COM = YOURDOMAIN.COM
. yourdomain.com = YOURDOMAIN.COM
yourdomain.com = YOURDOMAIN.COM

Change yourdomain.com to your actual domain name. Save and close krb5.conf.

Step 5: Test the Linux KDC Proxy client

In Linux client terminal run the command:

kinit user@yourdomain.com

Change user to a real user from your Active Directory, and yourdomain.com to your actual domain.

Now run klist in your terminal to see the created Kerberos ticket.

Conclusion

By following the steps in this guide, you can successfully configure a KDC Proxy server and enable secure Kerberos authentication for both Windows and Linux clients – even across network boundaries. Whether you’re integrating with Group Policy, fine-tuning firewall settings, or configuring the YNQ Client for Linux, this setup helps ensure seamless and secure access to domain resources through the KDC Proxy.

If you encounter any issues or need further assistance, please don’t hesitate to contact us and let Visuality Systems, the SMB protocol experts, help you.
